Private house in Lagos

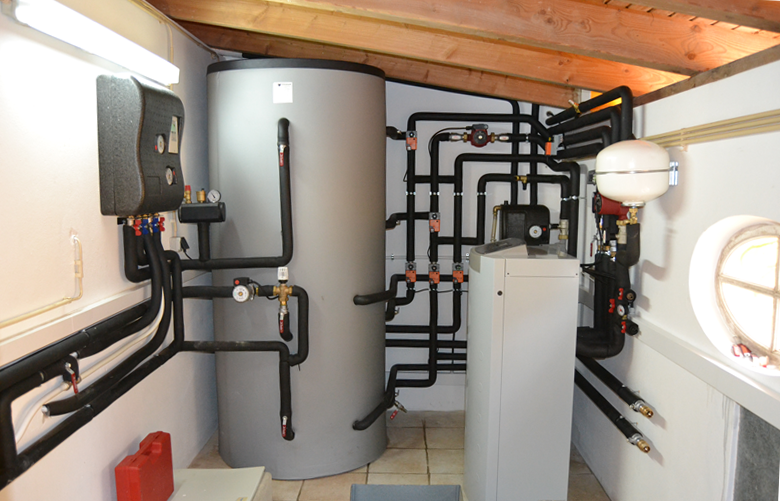

This project includes a combination of a solar thermal system for domestic hot water production with back-up heating for an external swimming pool and a grid-tied PV system. The installed system includes:

  • 5 flat plane collectors IS-PRO 2.7 HN
  • 1 buffer tank IPSX 1000 litres

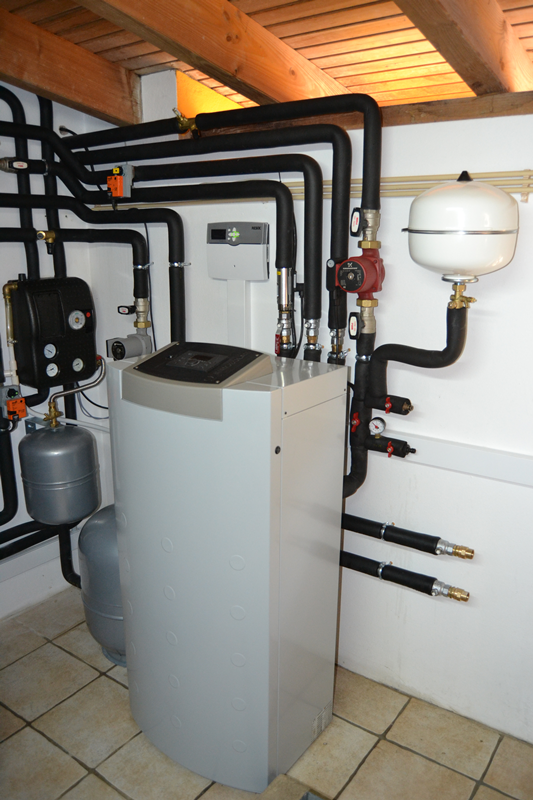

  • 1 heat pump with 14 kW

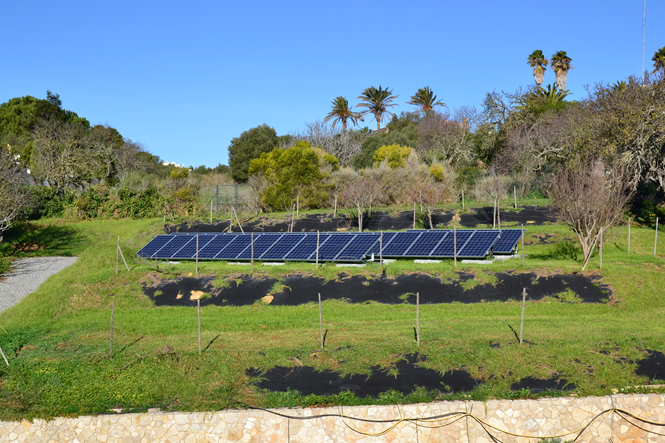

  • 30 Solon Blue 230/07 235/240Wp modules
  • 1 SMA Sunny tripower inverter
  • Total installed capacity: 7.2 kWp A
  • Annual production by the PV system: 12.294 kWh (aprox)
